FCC PRODUCTS MAP


FCCU / Coker Includes: RFCCU, DCCU, RCCU, FCC, FCU
Slide Valves and Actuators Spent, Regen, Recirculation, Cat Cooler, Double Disc Flue Gas, Single Disc Flue Gas, Flue Gas Isolation, BLAC INC. Special Design
Butterfly Valves and Actuators Expander Inlet, Expander Inlet ESD, Expander Bypass, Expander Small Bypass, Expander Isolation
Plug Valves and Actuators
Diverter Valves and Actuators 2-Port Linear, 2-Port Pendulum
Goggle Valves and Actuators Refractory Lined, Non-Refractory Lined, Vertical Mount, Horizonal Mount
Fractionation Isolation (Overhead Isolation, Overhead Vapor Line Isolation, Overhead Vapor Line) Double Disc Thru Conduit, Single Disc, Double Disc BLAC INC. Special Design
Main Air Blower Suction Butterfly Low Temperature
Main Air Blower Antisurge Actuators
Main Air Blower Discharge Butterfly Valves and Actuators
(Check Valve Replacement)		 Butterfly High Temperature
Axial Blower Stator Vane
Wet Gas Compressor Antisurge
Variable Orifice Valves and Actuators With Butterfly Internals, Without Butterfly Internals
Catalyst Withdrawal and Loading Valves and Actuators Tight Shutoff, Non-Tight Shutoff



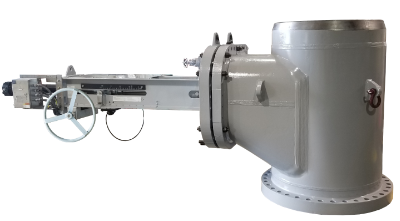

Double Disc Flue Gas
Slide Valve and Actuators

  • Actuators on both sides of the slide valve are operated from the same signal (equal movement centers the flow)


  • Actuator and handwheel extend all the way to the bonnet cover flange (no lower yoke)


  • Provides better access to stuffing box following flange


  • BLAC INC. Viper electric actuator is available as an option

Fractionator
Isolation Valve

  • Automated isolation by Single Disc or Double Disc gate valve with through conduit device


  • Installed into the vapor overhead between the Reactor and Fractionator

Catalyst Cooler
Slide Valve and Actuator

  • The catalyst cooler is a tube and shell heat exchanger with fluidization air


  • The standpipe and slide valve prevents excessive regenerator temperatures

Recirculated /
Cooled Catalyst
Slide Valve and Actuator

  • Regulates the flow of cooled catalyst to the regenerator

Catalyst Withdrawal
Valve and Actuator

  • Applicable for catalyst loading and unloading


  • Operation by BLAC INC. Viper electric actuator


  • Capable of continuous operation unique to
    BLAC INC. – opening and closing in 4-5 seconds

Spent Slide Valve
and Actuator

  • Controls the stripper catalyst level in normal operation


  • Regulates flow of spent catalyst to the regenerator


  • Protects the reactor and fractionator from a flow reversal

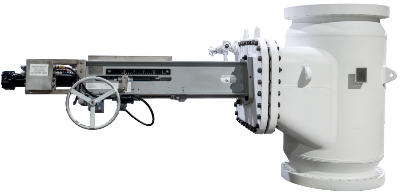

Regen Slide Valve
and Actuator

  • Regulates the flow of regenerated catalyst to the riser in normal operation


  • Maintains pressure head in the standpipe


  • Protects the regenerator from flow reversal
